Week 4: Tutorial

Box gutter sketch

Worhshop / Office Designs in Bendigo

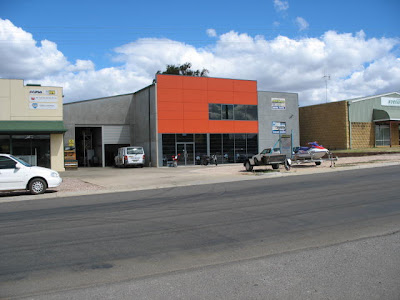

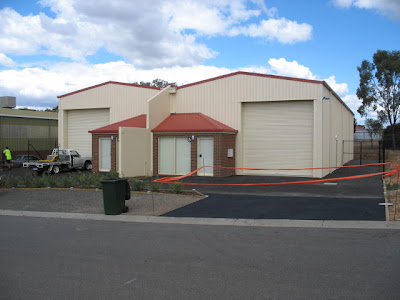

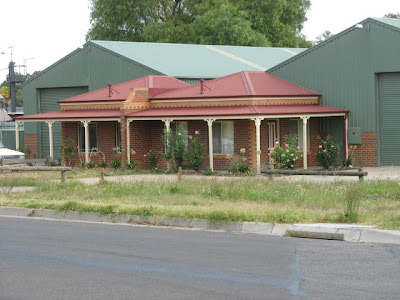

Here i drove around Bendigo trying to find different examples of office fronts attached to a Portal Frame shed. I ended up finding quite a range of different facades which shows that you can dress up a shed however you like. Some of the sheds i believe had facades that reminded me of residential type buildings which i found interesting. Well these are the examples that i felt demonstrates the range of facades that i found.

Week 3: Tutorial

Week 2: Tutorial

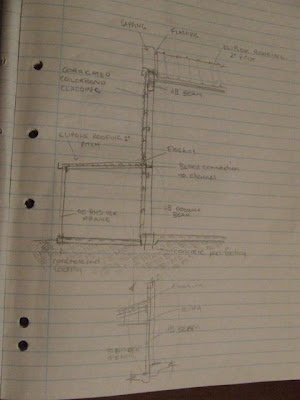

This is the sketch of the protal frame section that i did in class.

Portal Framing - Connection Details

These photos are taken in Bendigo, here two shops are being build as a mirror image

plan. There is a dividing precast concrete pannel between the two shops with a section removed so that the beams can connect. The Building has been built flat up against an existing brick wall bellonging to another building.

Portal Fraiming - Webbed Truss

These photos show a steel webbed truss. This type of construction can span long distances while still maintaining strength. The webbed truss is light weight and is made with minimal material.

Portal Framing - Connection Details

These pictures show a standard pitched roof portal frame structure. They show all the magor connection points from the slab/footing connetion to the ridge line connection.
